The reflective photoelectric switch is a light sensing device that emits and receives the body. The diode emits 940nm itself and receives near-infrared light as the light source. The external object of the transistor converts the reflective light chip detection into an electrical signal to transmit information.
The light-collecting chip is a phototransistor. When used, the light source reflected by the reflector must make the light-collecting chip work in the signal area and occupied area respectively to ensure that the signal is connected
The photoelectric switch must maintain timing with the object being detected to ensure signal transmission timing.
The photoelectric switch must maintain stable contact with the object being detected to ensure stable signal transmission.
Photoelectric switches must avoid misjudgments caused by strong light interference.
product parameter (specification)
|
Absolute Maximum Rating TA=25°C |
|||||
|
PARAMETER |
SYMBOL |
Ratings |
Units |
Notes |
|
|
Input |
Power Dissipation at(or below)25℃ Free Air temperature |
Pd |
75 |
mW |
|
|
ReverseVoltage |
VR |
6 |
V |
||
|
Forward Current |
IF |
50 |
mA |
||
|
output |
Collector Power Dissipation |
Pc |
75 |
mW |
|
|
Collector Current |
IC |
50 |
mA |
||
|
Collector -Emitter Voltage |
BVECO |
70 |
V |
||
|
Emitter-Collector Voltage |
BVECO |
6 |
V |
||
|
Operating Temperature |
Topr |
-40~+85 |
°C |
||
|
Storage Temperature |
Tstg |
-40~+85 |
°C |
||
|
Lead Soldering Temperature * |
Tsol |
260 |
°C |
1 |
|
The photoelectric switch must maintain timing with the object being detected to ensure signal transmission timing.
The photoelectric switch must maintain stable contact with the object being detected to ensure stable signal transmission.
Photoelectric switches must avoid misjudgments caused by strong light interfe
|
Optical Characteristics TA = 25°C |
|||||||||
|
Parameters |
Test Conditions |
Symbol |
Min |
Typ |
Max |
Units |
Notes |
||
|
Input |
Forward Voltage |
IF=20mA |
VF |
- |
1.2 |
1.6 |
V |
||
|
Reverse Curren |
VR=5V |
IR |
- |
- |
10 |
uA |
|||
|
Peak Wavelength |
-- |
λP |
- |
940 |
- |
nm |
|||
|
Output |
Dark Current |
VCE=10V |
ICEO |
- |
- |
100 |
nA |
||
|
C-E Saturation Voltage |
IC=2mA Ee=1mW/cm |
VCE(sat) |
- |
- |
0.4 |
V |
|||
|
Transfer Characteristics |
Light Current (IC(ON) ) |
VCE=5V IF=10mA |
A |
A2 Bin |
140 |
- |
170 |
uA |
2 |
|
A3 Bin |
170 |
- |
200 |
uA |
|||||
|
B |
B1 Bin |
200 |
- |
230 |
uA |
||||
|
B2 Bin |
230 |
- |
300 |
uA |
|||||
|
C |
C1 Bin |
300 |
- |
380 |
uA |
||||
|
C2 Bin |
380 |
- |
440 |
uA |
|||||
|
Leakage Current |
ICEOD |
- |
- |
1 |
uA |
||||
|
Rise time |
VCE=2mA IC=100uA RL=1KΩ |
tr |
- |
20 |
- |
uSec |
|||
|
Fall time |
tf |
- |
20 |
- |
uSec |
||||
product feature and applicatio
Applications
Camera
VCR
Floppy disk driver
Cassette type recorder
Early education machine
Various microcomputer control equipm
Extensive evaluation of consumer electronics, computers and peripherals, network communications, power security, power management, medical equipment and military products, communication instruments, medical instruments, audio equipment, video display instruments, communication systems, vehicle power supply, motor control, soft start controller, servo motor, variable frequency power supply, microwave communication, etc
4.Prodrection details

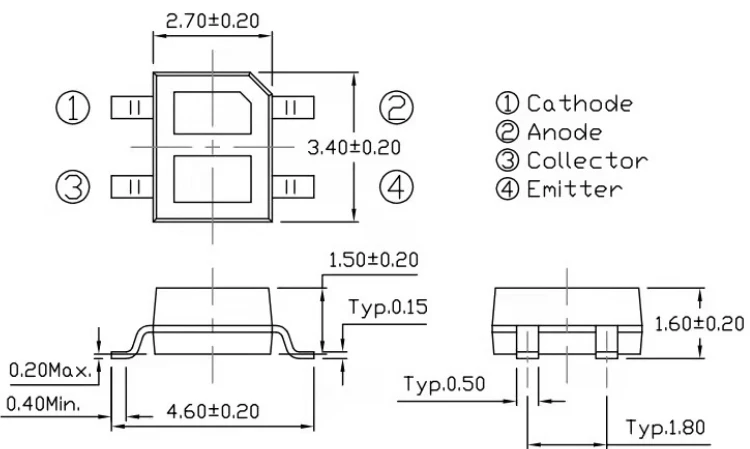

PACKAGE DIMENSIONS (Dimensions in mm unless otherwise stated)
ECRECOMMENDED SOLDER MASK(Dimensions in mm unless otherwise stated)
5.prodect qualificatio
6.Deliver,shippingandserving
7.Latest news
8.FAQ
1.How does a photo interrupter work?
The sensor emits infrared light from the LED emitter to the receiver. When an object blocks the light between these components, the sensor records the change, providing a way to detect motion, calculate rotational speed, or implement object detection.
2. How to use photointerrupter correctly?
Since the output circuit and input circuit of the photoelectric switch are electrically isolated (that is, electrically insulated), it has small size, multiple functions, long life, high precision, fast response speed, long detection distance, and strong resistance to light, electricity, and magnetic interference. Advantages, so it can be applied in many situations. The following is the correct use of photoelectric switches:
