Optocoupler

What is Optocoupler

An optocoupler (also called optoisolator) is a semiconductor device that allows an electrical signal to be transmitted between two isolated circuits. To understand what an optocoupler is and how it works, we’ll evaluate how it functions. Two parts are used in this electrical component: an LED that emits infrared light and a photosensitive device that detects light from the LED. Both parts are contained within a black box with pins for connectivity. The input circuit takes the incoming signal, whether AC or DC, and uses the signal to turn on the LED.

The photosensor is the output circuit that detects the light, and depending on the type of output circuit, the output will be AC or DC. Current is first applied to the optocoupler, making the LED emit an infrared light proportional to the current going through the device. When the light hits the photosensor, a current is conducted and switched on. When the current flowing through the LED is interrupted, the IR beam is cut off, causing the photosensor to stop performing.

Benefits of Optocoupler

Prevent ground loops in equipment that drives a remote load
Most ac-operated switching supplies (e.g., those used in computers, telecommunications, and instrumentation) use optocouplers for the isolated feedback path.

Suppress electrical noise effects
Suppress electrical noise effects. For example, it is difficult to take full advantage of a 16-bit ADC because the digital output signals (and noise on the digital ground to which you connect the converter's output) get back into the analog front end. You can extricate yourself from noise with optical isolation of the digital half.

To get a signal up to a circuit floating at high voltage
Designers of high-voltage power supplies sometimes use optocouplers to get a signal up to a circuit floating at high voltage.

The Functions of an Optocoupler

These components serve several critical functions within electronic systems:

Noise Elimination: They help remove electrical noise from signals, ensuring cleaner data transmission. They create an isolated pathway that blocks noise interference by utilizing an LED and a photosensitive receiver.

Voltage Isolation: They isolate low-voltage devices from high-voltage circuits, safeguarding sensitive components. This isolation is crucial for preventing damage from voltage surges such as those caused by radio frequency transmissions, lightning strikes, and power supply spikes.

Signal Control: These components allow small digital signals to manage larger AC voltages. By providing a bridge between different voltage levels, optocouplers enable precise control over high-power applications without direct electrical contact.

6N137 3.3v
The 6N137, HCPL2601, HCPL2611 single-channel and HCPL2630, HCPL2631 dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic...
read more
Reflective Photo Interrupte
The reflective photoelectric switch is a light sensing device that emits and receives the body. The diode emits 940nm itself and receives near-infrared light as the light source.
read more
In-ear Sensor
The TR2FdTRF4-BS01-RTA Composed of a GaAs VCSEL and a NPN Photo-transistor which is encased side-by-side on converging optical axis in a black thermoplastic housing.
read more
ITR 8307
The TR2DfTRF4-BS01-RWR is a light reflection switch which includes a GaAs IR-LED Transmitter and a NPN photo-transistor with a high photosensitive receiver for short distance，operating in the...
read more
SOP4 RP TRIAC
The TDM301X and TDM302X and TDM305X and TDM307X series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a monolithic silicon random-phase photo triac in a...
read more
IGBT Driver Gate
The TDL341 series Photocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system. It contains an AlGaAs LED...
read more
SOP 4 Optocoupler
TD817 SOP4 Optocoupler Belong to SOP 4 Optocoupler
The TD817 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar phototransistor...
read more

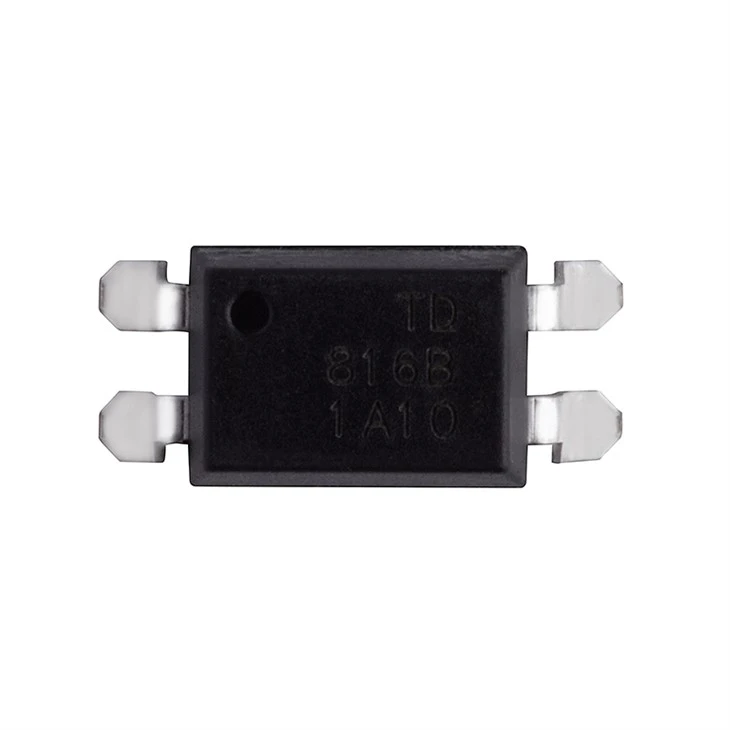

DIP 4 Optocoupler
TD816 belongs to DC Input, Photoelectric Crystal coupler DIP 4 Optocoupler
The TD816X1 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a...
read more
SOP 4 Transistor Optocoupler
TD356 series provide the most stable isolation belong to SOP4 Transistor Optocoupler
The TD356 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to...
read more
L SOP 4 Optocoupler
1018 LSOP 4 Optocoupler DC Input Photo Transistor Coupler
The TD1018 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon planar...
read more
S SOP 4 Optocoupler
TD217 DC Input, Photo Transistor Coupler belong to SSOP4 Optocoupler.
The TD217 series combine an AlGaAs infrared emitting diode as the emitter which is optically coupled to a silicon...
read more
DIP 6 Zero-Cross Optocoupler
TD3061 DIP6, DC Input, Zero-Cross Photo TRIAC Belong to DIP6 Zero-Cross Optocouple
The TD303X, TD304X and TD306X seriescombine an AlGaAs infrared emitting diode as theemitter which is...
read more

First 12 3 Last

Why Choose us

Quality services

Our team is committed to delivering high-quality services to our clients. We use the latest technologies and tools to ensure that our services exceed your expectations.

Quality

We offer high quality services and products that are relatable and resonate with your business needs.

Experience and expertise

Our company has been in business for many years and has amassed significant expertise and experience to provide quality services to our clients.

Competitive pricing

We offer competitive pricing for our services without compromising on quality.

Certifications and quality standards

Choose a factory that adheres to industry standards and certifications to ensure product safety and quality.

Optocoupler And Opto-Isolator Specifications

Current transfer ratio, CTR
The current transfer ratio of an optocoupler is one of the key specifications. It is the ratio of the current that flows in the output device divided by the current on the input device.
The CTR will vary according to the type of opto-coupler used in the output, those using photodarlingtons will be much higher than those using ordinary phototransistors. Values may be anywhere between 10% and 2000% - 5000%.It should be noted that the CTR tends to vary with the the input current level. Although it will vary according to the device, for man optocouplers it will peak for input current levels around 10mA falling either side of this value.

Bandwidth
In order to understand the maximum data rates that can be used with an opto-coupler, it is necessary to know the bandwidth.
For many opto-couplers using phototransistors it may only be in the region of 250 kHz, and for those using photodarlingtons it may be a tenth of this figure. Some much faster optocouplers are available. Typically the lower the CTR, the faster the rise and fall times

Input current
This is the current required for the input transmitter device - LED. The value is used to calculate the series resistor used to limit the current.

Output device maximum voltage
For opto-couplers using transistors, the maximum figure will be equal to the VCE(max) for the transistor. For opto-couplers using other devices in the output, the equivalent rating should be used. Also remember that a suitable margin should be retained as it is never advisable to operate devices close tot heir maximum ratings.

Optocoupler Parameters

Isolation voltage

This is the maximum permissible DC potential that can be allowed to exist between the input and output circuits. Typical values vary from 500V to 4kV.

VCE(MAX)

This is the maximum allowable DC voltage that can be applied across the output transistor. Typical values vary from 20V to 80V.

IF(MAX)

This is the maximum permissible DC current that can be allowed to flow in the input LED. Typical values vary from 40mA to 100mA.

Bandwidth

This is the typical maximum signal frequency that can be usefully passed through the optocoupler when the device is operated in its normal mode. Typical values vary from 20kHz to 500kHz, depending on the type of device construction.

Comparison Of Optocouplers And Digital Isolators

Item	Impact	Digital Isolators	Optocoupler
Timing performance	Enables higher throughput and efficiency for end product	Low propagation delay and skew, better part to part matching	High propagation delays and skew, worse part to part matching
Parasitic capacitive coupling	The lower the parasitics, the higher the CMTI	Less than half the parasitic coupling of optocouplers	High parasitic coupling with interdependent parameters
Reliability and high temperature operation	Longer product lifetimes	No wear out mechanisms, 60+ year operating lifetime at 125 °C at maximum VDD	Intrinsic wear-out mechanisms; 10x lower lifetime
Input current	High input current means higher power consumption	CMOS input buffers need very low input current	Requires higher input current to be competitive
Ease-of-use	Minimum external BOM needed to extract full functionality and performance	Fewer second order effects, minimum BOM required for full performance guarantee	Significant first and second order effects, temperature dependencies, imprecise current thresholds, CTR require external BOM to get stable performance
Electro-magnetic immunity and radiation	Immunity provides robustness and low radiation implies low noise generation	Capacitive-coupled devices are comparable to optos while magnetically coupled devices can be noisy and are susceptible to external EM noise	Optos are generally highly immune and have low radiation
Safety compliance	Ensures safety standards are tested and certified	General trend is newgeneration isolators are on par with optos	Optos have traditionally been used for many years and are compliant

PCB Layout Guidelines

Before adding an Optocoupler to your PCB layout, consider these three guidelines:

Keep optocoupler ground connections separate

A standard Optocoupler includes two ground pins, one for the LED and another for the photosensitive device. Connecting these grounds will open your sensitive circuitry to any noise from the external ground. To avoid this, always create two connection points, one for external ground pins and the other for input ground wires.

Choose the right current limiting resistor value

Selecting a current limiting resistor that operates at an Optocoupler's minimum value will produce erratic behavior. It's also possible to choose a resistor that provides too much current, which will pop the LED. When selecting a value for your resistor, be sure to find the value of the minimum forward current from the Current Transfer Ratio chart in your Optocoupler's datasheet.

Know what kind of optocoupler you need

Not every Optocoupler is created equal, and you'll need to select the right type for your application. For example, an Opto-Triac is used if you need to control an AC load. Opto-Darlington's are only for small input currents. If all you need is a standard input isolation, then a general PC817 Optocoupler will get the job done.

Important Optocoupler Specifications

Isolation voltage (Viso): It is defined as the absolute maximum AC voltage that can exist across the input and output circuit stages of the optocoupler, without causing any harm to the device. The standard values for this parameter may fall between 500 V to 5 kV RMS.

VCE: It may be understood as the maximum DC voltage that could be applied across the device's phototransistor pinouts. Typically this may range between 30 to 70 volts.

If: It is the maximum continuous DC forward current that may flow in the IR LED or the IRED. It is the standard values of current handling capacity specified to a phototransistor output of the optocoupler, which may range between 40 to 100 mA.

Rise/fall time: This parameter defines the logical speed of the optocoupler response across the internal IR LED and the phototransistor. This may be typically from 2 to 5 microseconds for both rise and fall. This also tells us about the bandwidth of the optocoupler device.

Types of Optocoupler

Photo-transistor optocoupler
The Transistor type can be anything whether PNP or NPN.Photo-Transistor can be further of two types depending on the output pin availability.This pin 6 is used to control the sensitivity of the photo-transistor. Often the pin is used to connect with ground or negative using a high value resistor. In this configuration, false triggering due to noise or electrical transients can be controlled effectively.
Also, before using Photo-transistor based optocoupler, the user must know the maximum rating of the transistor. PC816, PC817, LTV817, K847PH are few widely used photo-transistor based optocoupler. Photo – Transistor based opto-coupler is used in DC circuit related isolation.

Photo-darlington transistor optocoupler
Darlington Transistor is two transistor pair, where one transistor controls other transistor base. In this configuration the Darlington Transistor provide high gain ability. As usual the LED emits infrared led and controls the base of the pair transistor.
This type of opto-coupler also used in DC circuit related area for the isolation. The 6th pin which is internally connected to the base of the transistor, used to control the sensitivity of the transistor as discussed previously in photo-transistor description. 4N32, 4N33, H21B1, H21B2, H21B3 are few photo-Darlington based opto-coupler example.

Photo-TRIAC optocoupler
TRIAC is mainly used where AC based control or switching is needed. The led can be controlled using DC, and the TRIAC used to control AC. Opto-coupler provide excellent isolation in this case too. Here is one Triac Application. The photo-TRIAC based opto-coupler examples areIL420, 4N35 etc are example of TRIAC based opto-coupler.

Photo-SCR based optocoupler
SCR stand for Silicon controlled rectifier, SCR also referred as Thyristor. In the upper image a Photo-SCR based opto-coupler’s internal construction is shown. Same as like other opto-coupler the LED emit Infrared. The SCR is controlled by the intensity of the LED. Photo-SCR based Opto-coupler used in AC related circuitry. Learn more about Thyristor here.
Few Examples of photo-SCR based opto-couplers are:- MOC3071, IL400, MOC3072 etc.

Application of Optocoupler

Power supply regulation
Optocouplers are often used in switch-mode power supplies to provide feedback and maintain a constant output voltage. They isolate the primary side from the secondary side, ensuring safety and minimizing noise interference.

Industrial automation
In industrial automation systems, optocouplers help protect sensitive control circuitry from high voltage transients, noise, and ground loops that can occur in harsh environments. They are used for isolating PLC (Programmable Logic Controller) inputs and outputs, as well as for data communication between devices.

Motor control
Optocouplers are employed in motor control circuits to isolate high-power components, such as relays or motor drivers, from low-power control signals. This ensures that the control signals remain unaffected by the high voltages and currents generated by the motor.

Digital logic interfaces
Optocouplers enable communication between different digital logic levels and incompatible voltage levels, allowing them to function as level shifters. They can also be used to isolate and protect microcontrollers and other sensitive digital components from high-voltage signals.

Audio equipment
In audio equipment, optocouplers are used to isolate signal paths, preventing ground loops and other noise sources from interfering with audio quality. They can also be employed in volume control circuits and compressors.

Telecommunications
Optocouplers play a crucial role in providing signal isolation in telecommunications equipment, such as modems and telephone exchanges. They prevent ground loops and voltage surges from damaging sensitive circuitry, ensuring reliable data transmission.

Medical devices
In medical devices, optocouplers are used to maintain electrical isolation between the patient and the device, ensuring safety and preventing electrical interference from affecting the device’s operation.
In summary, optocouplers serve a wide range of applications across various industries, offering electrical isolation, noise immunity, and protection for sensitive circuits. Their versatility makes them an essential component in many electronic systems.

How to Use an Optocoupler to Pass Signals Between Controllers at Different voltages

Gather materials
For this project, you will need:
-Devices for communication (Raspberry Pi, Arduino, PLC, etc.) and their associated power sources
-Prototyping breadboard
-A variety of resistors (we used 2x56 Ohm and 2x1K Ohm)
-A 4N25 optocoupler, or similar chip

Understand 4N25 pinout
The 4N25 optocoupler datasheet shows the pinout, and the short version is this: the signal you pass through the left-side circuit (pins 1 and 2) will power an LED. This LED will emit photons that interact with the transistor connecting pins 4 and 5, allowing current to flow between the pins (from 5 to 4).

Choose an appropriate resistor
The 4N25 LED, according to the datasheet, typically drops 1.3 V, and can handle a maximum current of 60 mA.
Using Ohm's Law, choose a resistor value to place between your signal source and pin 2. The voltage drop across this resistor will equal the voltage of your source signal minus the 1.3 V of the LED, and you can set the current equal to 40 mA (or any value you like, as long as it is under 60 mA).
One additional consideration is the power through the resistor. Most conventional resistors are rated for 1/4 Watt, so be careful that your power (voltage times current through resistor) does not exceed .25-- otherwise, your resistor will get very hot, and may potentially fail.

Build the circuit
To build the circuit, you'll want your signal source to lead to the resistor, resistor to pin 1, then pin 2 to signal ground.
On the other side of the chip, you'll want your receiving source to lead to pin 5, then receiving circuit connected to pin 4. This circuit should eventually connect to ground; the chip acts as a switch between pins 5 and 4.

Test your circuit
You should now be able to pass an electrically isolated signal from the left side of the chip to the circuit on the right side.
Some final considerations: there is a collector current limitation with the optocoupler, in general, not allowing more than 50 mA to flow. If your receiving circuit requires more current/power, you may want to consider a different solution. I use this circuit to pass signals between my PLC and Raspberry Pi, but cannot use it to power components of my project (like solenoids).

How to test an optocoupler

Step 1
First the anode and cathode of the LED ( in this case pins 1 and 2 ), and then using an ohmmeter set on the ‘X1 Ohm' domain, measure between pins 1 and 2, and you should get one reading measuring one way and no reading the opposite way (just like you check a diode). If you get a value either way or no value at all, then certainly there is a problem with the LED, and you should find another optocoupler.

Step 2
