SOP 5 High-speed Optocoupler

Features

High isolation 3750 VRMS

DC input with transistor output

Operating temperature range - 55 °C to100 °C

REACH compliance

Halogen free

MSL class 1

Regulatory Approvals

UL - UL1577

VDE - EN60747-5-5(VDE0884-5)

CQC - GB4943.1, GB8898

Ground loop elimination

LSTTL to TTL, LSTTL or CMOS

Line receiver, data transmission

Data multiplexing

Switching power supply

Pulse transformer replacement

TDM601 belongs to SOP5 high-speed optocoupler, the speed is at 10 Mbit/s, withstand voltage is 3750 vrms, output VCC7V, small volume 4.4 * 3.6 * 2.1 mm, operating temperature: -55 ° CTO 100 ° C; it can replace Everlight ELM601/ELM600, LITE-ON LTV-M601/LTV-M456, CT MICRO CTM611, sharp PC410L0N1P0F, Toshiba LP2362/TLP116A, AVAGO HCPL-M600/HCPL-M601, Renesas PS9121/PS9122.

SOP5 High speed optocoupler

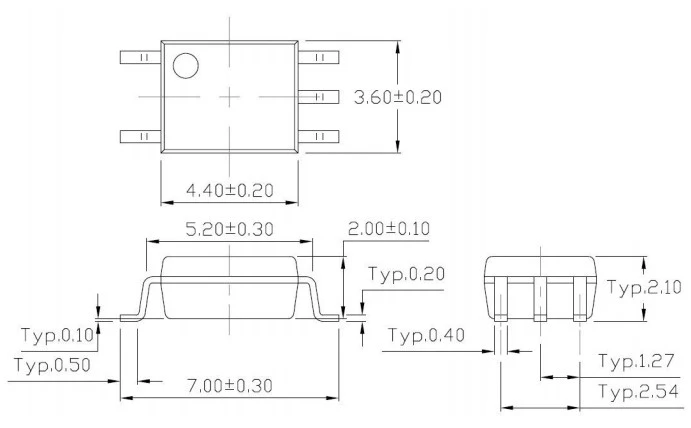

Package Dimensions (Dimensions in mm unless otherwise stated)

Recommended Solder Mask (Dimensions in mm unless otherwise stated)

1.High-speed optocouplers are mainly used in which products?

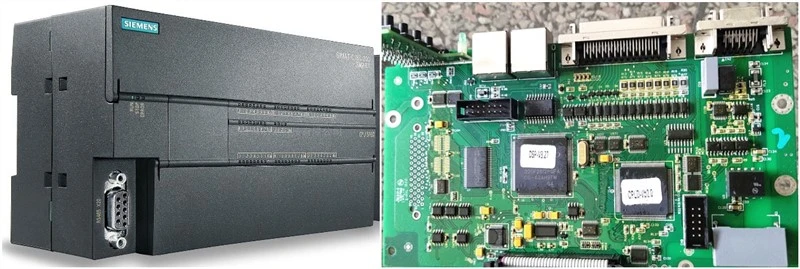

High-speed optocouplers are mainly used in AC and DC brushless motor drivers, pulse transformer replacement, industrial converters, air conditioners, renewable energy converters, sewing machines and switching power IPM interface, gate drive applications and general digital isolation;They also have the advantages of small size, close coupling, small driving power, fast action speed, wide working temperature range and so on.

2.How to apply for samples?

If you need samples, you can contact our customer service personnel directly, provide detailed information and contact, we will contact you the first time, the samples will be provided to you as soon as possible.

3.The difference between high-speed optocouplers and ordinary optocouplers?

The structure of high-speed optocouplers is different from that of ordinary optocouplers. The structure of high-speed optocouplers is photodiodes+amplification drive circuits, while the structure of ordinary optocouplers is photodiodes+amplification drive circuits [1]. High speed optocouplers are widely used in digital circuits. They can convert electrical signals into optical signals and transmit them, achieving fast response and high-precision transmission. Their speed can reach the Gbps level, providing a more efficient transmission method compared to traditional electrical transmission, with lower loss and higher data quality.

4.What is the working principle of high-speed optocoupler?

High speed optocoupler is a semiconductor optoelectronic device that encapsulates light-emitting devices and photosensitive devices in the same housing, and transmits electrical signals through the conversion of electricity to light to electricity. Its working principle is that when a signal is applied to the input of the optocoupler, the light-emitting diode converts the electrical signal into an optical signal and sends it to the photosensitive transistor. After receiving this light signal, the photosensitive transistor converts it back into an electrical signal and outputs it to the output terminal of the optocoupler.

5.What is the biggest advantage of high-speed optocouplers?

One major advantage of high-speed optocouplers is their high isolation performance. Due to the fact that signals are transmitted through light, the electrical signal passing through the photosensitive transistor is completely isolated from the electrical signal at the input end, thereby reducing signal interference in the circuit. In addition, optocouplers also have advantages such as high speed and low power consumption, making them suitable for a wide range of applications.
