SMD 0805 Jumper

- Capability to develop specific reliability programs designed to customer requirements

- Size, packaging and materials can be customized for special customer requirements

- Extra low resistance is available for PCB designer consideration

TCSO 0805 Series

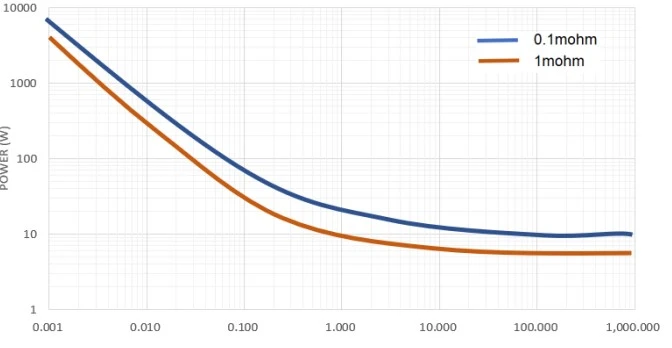

Pulsed power Characteristics

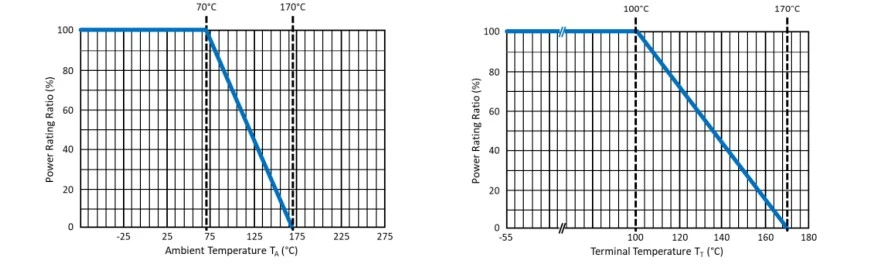

Derating Curv

1.Thin Film Zero Ohm Jumper Resistors?
Thin Film Zero Ohm Jumper Resistors are Resistors whose main function is to connect different parts of a circuit. They are commonly used as jumper resistors because they have zero resistance, which means they do not consume power or generate heat. In addition, the thin-film structure of these resistors makes them very compact and suitable for large circuit boards with limited space.

2.What do you need to consider when selecting Zero Ohm jumper resistors?
Resistance value: Zero Ohm JumperResistors usually have a resistance value between 0.1 and 1 Ohm. The value of the selected resistance depends on the current and voltage of the circuit and the isolation resistance required. Materials: Zero Ohm jumper resistors are usually made of copper or aluminum, and different materials have different inductance and resistance characteristics. The stability and reliability of the circuit can be improved by selecting suitable materials. Size: the size of the Zero Ohm jumper resistors should match the required circuit. The layout and space constraints of the circuit need to be taken into account when selecting. Temperature coefficient: the temperature coefficient for Zero Ohm JumperResistors also needs to be considered. The performance of the circuit may be affected if the resistance of the selected resistor varies significantly with temperature. Brand and price: choosing the right Zero Ohm jumper resistors brand and price is also a consideration. Some well-known brands of resistors have high quality and reliability, while some low-cost brands of resistors may not be able to meet the requirements.

3. How to choose a 0-euro resistance?

The following aspects should be considered when choosing a 0 euro resistance:

Current bearing capacity: different sizes of 0 Ou resistance is allowed to pass through the different current, generally 0603 for 1A, 0805 for 2A [1]. It is necessary to choose the 0 euro resistance of the corresponding size according to the actual current in the circuit.

EMC countermeasure: In the circuit design, 0 Ou resistance can effectively limit the loop current and suppress the noise. Therefore, 0 O resistance can be considered in circuits requiring EMC countermeasures.

Package size: when the position is reserved for magnetic beads and inductors, it is necessary to choose different sizes of 0 euro resistance package according to the size of magnetic beads and inductors.

Circuit type: in the case of analog and digital single ground grounding, various ground together, then 0 euro resistance can be used.

In short, when choosing 0 euro resistance, the above factors need to be considered according to the actual requirements of the circuit.

4.0 European resistance?

0 European resistor plays an isolation role in circuit design, mainly separating digital and analog to reduce common mode interference and noise. At the same time, 0 Ou resistance can also be used as a current circuit path, inhibiting the influence of electric field and magnetic field, and reducing interference. In addition, 0 euro resistors can also be used to configure circuits, instead of jumper and dial switch, reducing maintenance costs. In short, 0 European resistance plays an important role in circuit design, which can improve the stability and reliability of the circuit.

5.0 European resistance how to measure the quality?

0 European resistance is a commonly used element in circuit design, which can play the role of current limit, loop current test, circuit debugging and so on. When using 0 euro resistance, we need to pay attention to how to detect it is good or bad. Here are some commonly used test methods:

Measured using a multimeter. The two tables of the multimeter are connected with the two ends of the 0 euro resistance, and the needle should be to the corresponding resistance scale. If the needle is stationary or the indicator is unstable, the resistance may have been damaged.

Observe whether the resistance surface has burning, discoloration, cracking and other phenomena. If these phenomena occur, it means that the resistance may have been damaged or has been affected by adverse factors such as high temperature and high pressure.

Check whether the resistance is being loose or falling off. If the resistance is loose or falls off, it will cause the circuit to break off and affect the normal operation of the circuit. Therefore, we need to check whether the resistors is fastened on the circuit board.

In short, when using 0 euro resistance, we need to test it to ensure the normal operation of the circuit. If the resistance is damaged or abnormal, it should be replaced or repaired in time.

6.Jumper line 0 resistance function?

Jumper 0 resistance in the circuit mainly has the following functions: (1) can be convenient debugging or compatible design use [2]; (2) can replace the actual circuit parameters uncertain resistance, debugging with specific numerical components; (3) can easily measure the current consumption of the circuit; (4) under the high frequency signal, can act as an inductor or capacitor, mainly used to solve EMC problems; (5) can be used as a single point grounding means.

In addition, the jumper 0 resistance can also be used for anti-interference in the segmentation area, providing a short reflux path and reducing interference. In the product design, the application of 0 European resistance instead of jumper welding on the board can reduce the maintenance cost and avoid the misunderstanding caused by user disturbance Settings. It should be noted that different sizes of 0 Ou resistance allow to pass through different current, generally 06031A, 08052A, so different sizes of 0 Ou resistance should be selected according to the current size.

7.What is the role of ohm resistance on the circuit?

1. Single og and digital ground

As long as it is the ground, eventually it will be connected together, and then into the earth. If not connected together is the "floating ground", there is a pressure difference, easy to accumulate charge, resulting in static electricity. Ground is the reference 0 potential, all voltages are the reference, the standard of the ground should be consistent, so all kinds of ground should be short together. It is believed that the earth can absorb all the charges and keep them stable, and is the ultimate reference point. Although some boards do not connect to the earth, the power plant is connected to the earth, and the power supply on the board will eventually return to the power plant. If the analog and digital area are directly connected in a large area, it will lead to mutual interference. Not short and inappropriate, there are four ways to solve this problem:

(1). With magnetic beads connection; 2, with the capacitor connection; 3, with inductive connection;

(2). Interconnection is used for the current loop

When the electric ground plane is divided, the shortest signal backflow path is caused to break. At this time, the signal loop has to detour, forming a large loop area, and the influence of electric field and magnetic field becomes stronger, which is easy to disturb / be disturbed. By spanning the 0-Ou resistance in the segmentation area, it can provide a short reflux path and reduce the interference.

(3). Configure the circuit

Generally, do not appear jumper and dial switch on the product. Sometimes the user will move the set, easy to cause misunderstanding, in order to reduce the maintenance cost, the application of 0 European resistance instead of jumper and other welding on the board. Vacant jumper is equivalent to an antenna at high frequency, with good patch resistance effect.

(4). Other uses

Cross-line debugging / testing: at the beginning of the design, a resistance should be used for debugging, but the specific value can not be determined. After adding such a device, it is convenient for the debugging of the circuit. If the debugging results do not need to add resistance, add a 0 ohm resistance.stand.wound.discuss. City says that the temporary replacement of other patch devices as temperature compensation devices is more often due to the needs of EMC countermeasures. In addition, the 0 ohm resistance is less than the parasitic inductance of the hole, and the hole can affect the ground plane (for digging).
