SMD 1206 Jumper

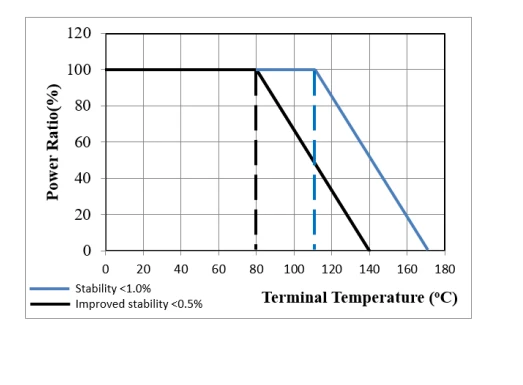

Derating Curve

1.The main application of euro resistance in which?

When wiring cross-wire, debug/Test, temporary replacement of other chip devices, as a temperature compensation device, more often for the need of EMC countermeasures. In addition, the 0 ohm resistance is smaller than the parasitic inductance of the through hole, and the through hole also affects the ground plane (because the hole is to be dug) , so different current will choose different size.

2.What should be paid attention to when the 0 euro resistance is cross?

When the ground plane is split, the shortest return path of the signal is broken. At this point, the signal loop has to go around and form a large loop area. The influence of electric and magnetic fields becomes stronger, easily disturbed/disturbed. Cross-connect 0 euro resistor on the divider, which can provide a short backflow path and reduce interference.

3.What is the role of the 0 euro resistance in these situations?

There is no function in the circuit, just on the PCB for easy debugging or compatible design reasons,Can be used to do jumper, if a section of the line is not used, directly do not stick to the resistance can (does not affect the appearance),When the matching circuit parameter is uncertain, it is replaced by 0 ohms. When debugging, the parameter is determined and then replaced by the component with specific value,Measure the current consumption of a part of the circuit, you can remove the 0OHM resistance, connected to the ammeter, so that easy to measure the current consumption,Wiring, if the cloth is not over, you can also add a 0 euro resistance.

4.What are the characteristics of 1206 jumper resistors?

The SMD 1206 jumper resistor is a chip resistor that is used primarily as a connecting wire or jumper in a circuit. This resistance in the circuit does not play the role of resistance, but as a replacement of the wire components, can be easily connected to all parts of the circuit, but also play a certain role in signal conditioning. SMD 1206 jumper resistor is widely used in electronic products because of its small size, light weight and good welding performance.

5.SMD 1206 jumper resistor how to use?

The SMD 1206 jumper resistor is a chip resistor commonly used in surface mount of electronic PCB assembly. It has a size of 1206, or 0.12 inches in length and 0.06 inches in width [1] . When in use, it needs to be welded on the PCB board, you can use the SMT machine or hand welding [2] . SMD 1206 jumper resistor in the circuit can play a connection, voltage, current limit, etc. . It should be noted that different types of SMD 1206 jumper resistors have different resistance and power levels, need to be selected according to specific needs.
