Product Parameter (Specification)
|
Photo |
Model |
Type / Size |
Power Rating (Watts) |
Resistance Range (mΩ) |
Operation Temp. Range |
TCR |
AEC-Q200 |
|
|
MCSH0402 |
SMD 0402 |
0.25 |
8 |
-55~+170℃ |
±200 |
YES |
|
3.0New ≦R≦8 |
±200 |
||||||
|
|
MCSH0603 |
SMD 0603 |
0.5 |
10 |
±75 |
YES |
|
|
5≦R≦10 |
±100 |
||||||
|
1.0New ≦R<5 |
±100 |
||||||
|
|
MCSE0805 |
SMD 0805 |
0.5 |
10 |
±50 |
YES |
|
|
5≦R≦10 |
±100 |
||||||
|
1.0New ≦R<4 |
±100 |
||||||
|
|
MCSE1206 |
SMD 1206 |
0.5/1.0 |
10 |
±50 |
YES |
|
|
4≦R≦10 |
±75 |
||||||
|
2≦R<4 |
±100 |
||||||
|
|
MCS2512 |
SMD 2512 |
1.0/1.5/2.0 |
10≦R≦100 |
±50 |
YES |
|
|
2≦R<10 |
±100 |
||||||
|
|
MCSH2512 |
SMD 2512 |
3 |
1.0New ≦R≦30 |
±50 |
YES |
|
|
|
NEW MCSE2816 |
SMD 2816 |
2 |
10 |
±50 |
YES |
|
|
3≦R≦10 |
±100 |
||||||
|
|
NEW MCSE4320 |
SMD 4320 |
5 |
10≦R≦20 |
±50 |
YES |

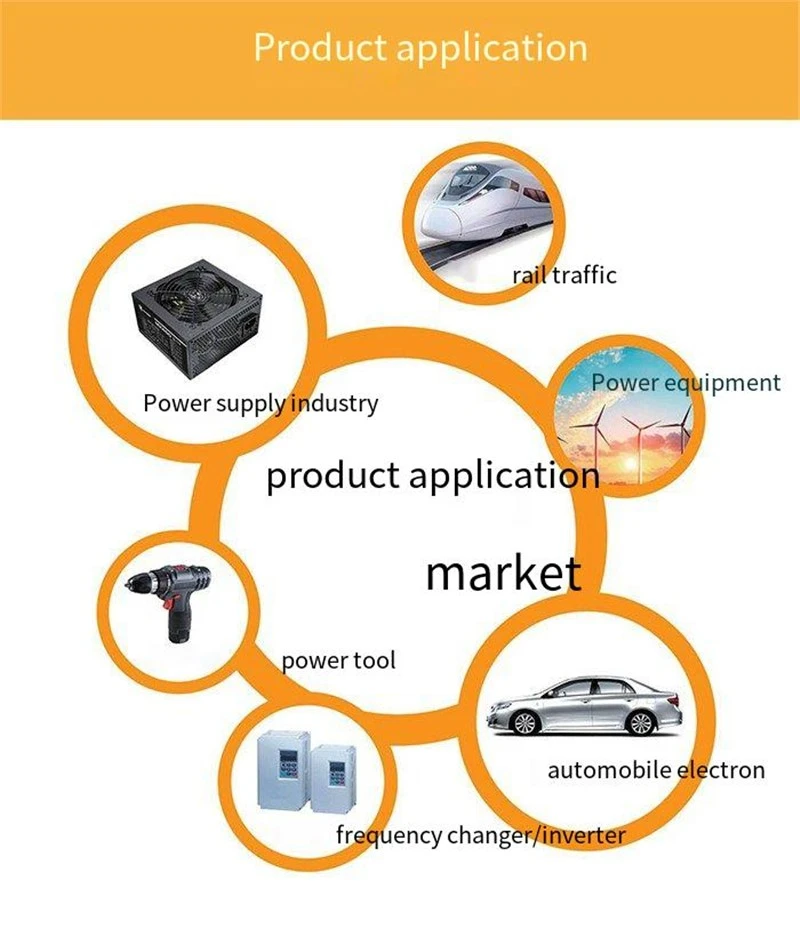

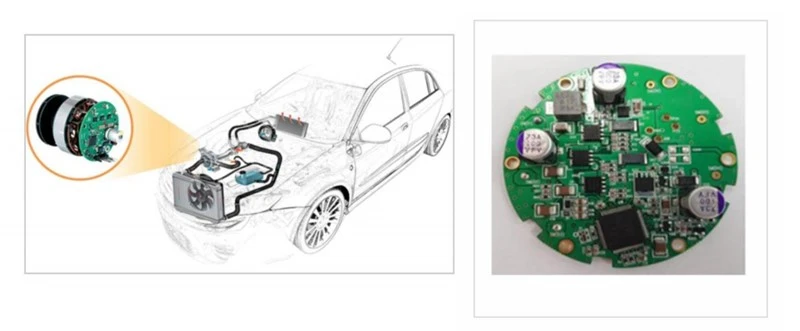

Product Feature And Application
Advantage and Feature
- High Power and Low Ohmic
- Low TCR and Low EMF
- Current Sense
- Battery Management
- Power Supply
Prodection Details
Derating Curve
Prodect Qualification
Deliver, Shipping And Serving
Latest News
FAQ
1:What is the difference between thin film alloy resistance and manganese copper alloy resistance?
Thin film alloy resistors and manganese copper resistors are two different types of resistors. Thin film alloy resistors are the most widely used and used in the precision resistance market, and they are cheaper and have a wider range of resistance values than wire-wound resistors and foil resistors. Thin film resistors are an economical choice for applications with high resistance values of intermediate precision and considering space efficiency. The resistance of manganese copper alloy is a kind of resistance material, and its resistance body is made of manganese copper alloy, which has higher resistivity and smaller temperature coefficient. Compared with thin film resistors, manganese copper alloy resistors have higher precision resistance values, but they also cost more. Therefore, when choosing a resistor, it is necessary to consider factors such as resistance accuracy, resistance value range, cost and reliability according to specific needs.
2:1206 thin film alloy resistance is generally used in what products?
It is generally used on auto-grade metal film chip resistors. This resistor has the characteristics of high temperature stability, low temperature coefficient, high precision, etc. It is suitable for automobile, telecommunication, medical equipment, industrial equipment and other fields.
3:What is the difference between thin film resistance and thick film resistance?
Thin film and thick film resistors are the most common types of resistors on the market. The difference between them is the resistance layer on the ceramic substrate. While they may look very similar, their properties and manufacturing processes are quite different. Thin film resistors have a metal film that is vacuum-deposited on an insulating substrate and is manufactured by firing a special slurry onto the substrate. Thick film resistors are made of metal and glass materials, which are non-conductive, so electrons cannot pass through glass particles.
4:What is the difference between film resistance and patch resistance?
Film resistors and patch resistors are different resistors. Thin film resistor is made of circuit element, device and connection on glass or ceramic substrate by thin film technology, and packaged. The patch resistor is printed by the thick film process, and the metal powder and glass uranium powder are mixed and sintered at high temperature to form a resistor. Although the two materials and processes are different, but have high precision, good stability, strong anti-interference ability and other characteristics, widely used in computers, mobile phones, electronic dictionaries, medical electronic products, video cameras, electronic meters and VCD machine and other electronic products.
